Application Layers

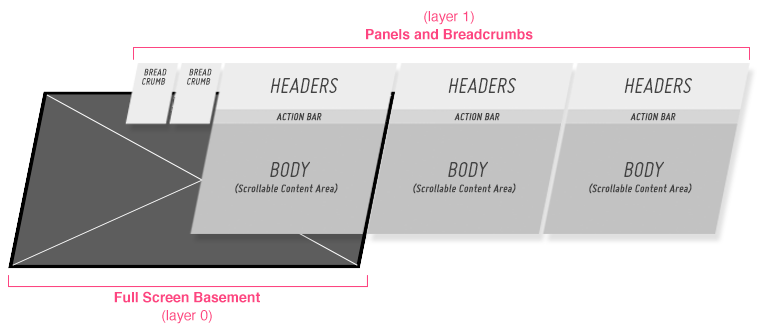

Panels and Basement

The bottom layer of an application is referred to as the "basement" and is used for displaying fullscreen content such as video or photos. The layer above contains panels and drawers. Panels slide in from the right of the screen. When a new panel is opened, the previous panel transitions into a breadcrumb and is pushed to the left.

When the basement has content loaded into it, a "hide panels"/"show panels" indicator will appear on the right side of the screen. If the user clicks the "hide panels" indicator, all open panels and breadcrumbs will transition off screen to the right.

If, while viewing the full screen basement content, the user clicks on the "show panels" indicator, the panels will transition back in from the right; the last panel the user was in will be open.

Top Drawer

The Top Drawer is on the same layer as the panels. This means that when the drawer is opened, it pushes the panels down the screen. When a drawer is partially opened, such as in the Music Player Pattern, the header is still visible, so that the user does not lose the context of the current panel.

Top Drawer with Panels

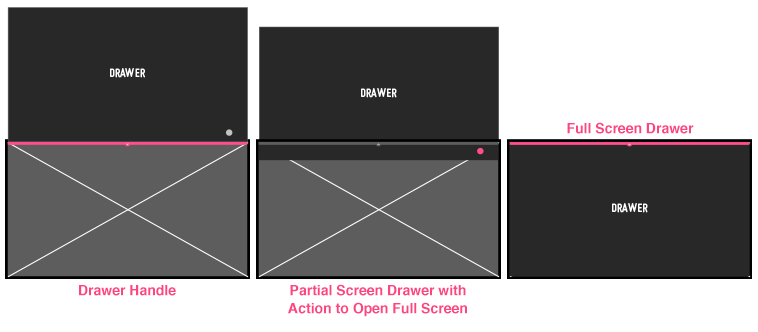

Since the top drawer is on the same layer as the panels, if it is opened while viewing the full screen basement, the drawer will open on top of the basement.

Top Drawer Over Basement

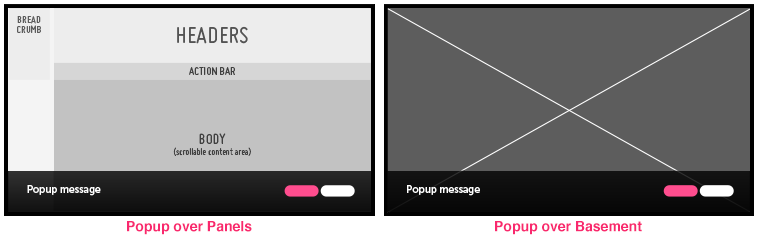

Popups

Popups always open on the top layer of the application. Whether you are in a panel, a drawer, or the basement, any popups that you open will appear on a layer above the rest of the app.

Popups
