Feature Navigation

Problem

Users frequently need to access certain features of an app, such as Search, Music Player, Shopping Cart, Wish List, etc.

Solution

The Top Drawer gives users quick and easy access to an application's most important features, no matter what panel they happen to be in.

How to Use

The Top Drawer is accessed via a handle at the top of the screen.

The width of the Top Drawer is equal to the width of the screen so that the user can point anywhere along the top edge to access the drawer's handle.

In this example, the handle for the Top Drawer is in the focused state. Once the user clicks on the handle, the Drawer will open.

The Top Drawer is on the same layer as the panels. When it opens, the drawer pushes all panels and breadcrumbs down so that the breadcrumbs and panel headers remain visible if the drawer is only partially open.

The Top Drawer may be set to any height; it is set to the full screen height by default.

To manually close the Top Drawer, click the handle. The drawer and panels slide up to their default position.

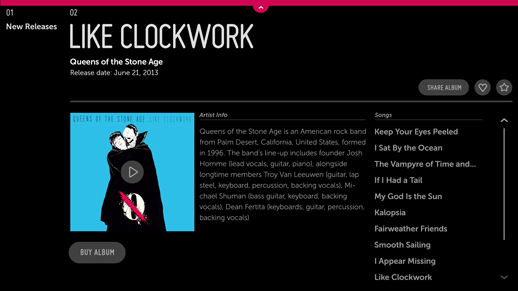

In this Search example, if the user selects content from the drawer, the drawer automatically closes and a Detail Panel opens.

Example 2: Music Player

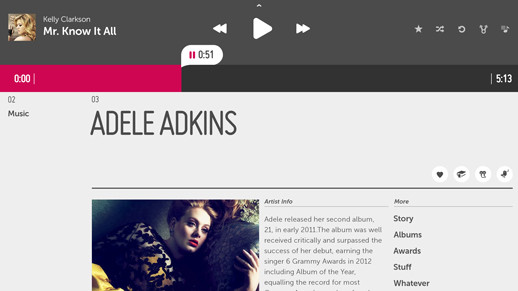

In this example the height of the drawer has been set so that it appears as partially open, with a simple, persistent music player exposed. This smaller drawer gives the user quick access to the playback controls without taking over the full screen.

Note the inclusion of list action buttons in this view. One of these buttons lets the user expand the partially open drawer to a fullscreen state.

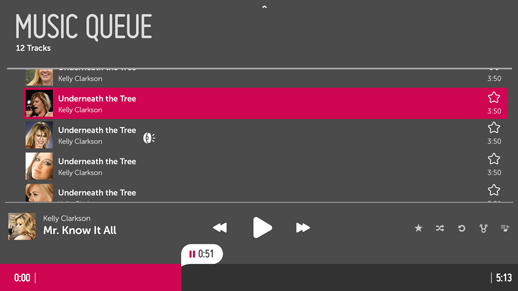

In this case, clicking the Music Queue Action expands the drawer to fullscreen so that the user can interact with the Music Queue.

Why

The assumption behind this pattern is that non-productivity apps for TV do not need many persistent features. In fact, many will need none at all, while most will need no more than one.

The most common persistent feature for TV apps is Search. The Top Drawer is the ideal place for this. You may use it to provide access to Search throughout your app, in a position of prominence on the screen.

Each app may have up to three Top Drawers. This limit exists to keep the drawer from becoming a dumping ground for features.

What to Avoid

Do not include more than three options within the Top Drawer.

Do not use the Top Drawer for persistent, menu-based navigation.

Patterns: Global Navigation
